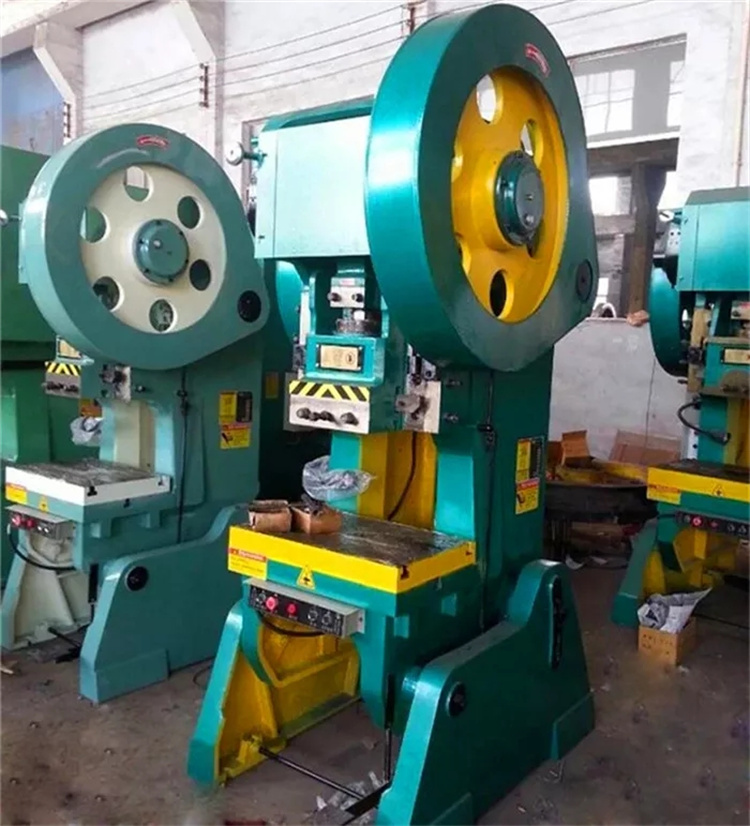

200 ton J23 c press mechanical punching machine

Hasiera / Produktuak / 200 ton J23 c press mechanical punching machine

Ezaugarriak

  • J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
  • So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
  • J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

Aplikazioak

Zehaztapena

Zehaztapena
Unitateak
JB23-40
JB23-63
JB23-63A
Presio nominala
KN
400
630
630
Indar nominalaren trazua
mm
4
4
4
Graduatzailearen trazua
mm
80
80
80
Graduatzailearen trazu kopurua
times/min
50
50
50
Trokelaren gehienezko altuera
mm
230
250
300
Trokelaren altuera doitzea
mm
45
50
50
Irristatzailearen erdigunetik markorako distantzia
mm
220
250
250
Worktable dimension
mm
390x630
420x650
470x750
Mahaiaren panelaren lodiera
mm
70
70
80
Size of the handle hole
(diameter x depth)
mm
φ50x70
φ50x70
φ50x70
Zutabe bertikalen distantzia
mm
330
320
390
Motor nagusia
Eredua
Y112M-4
Y132S-4
Y132S-4
Boterea
KW
4
5.5
5.5
Maximum tilting angle of body
°
25
25
25
Overall dimension(LxWxH)
mm
1600X1100X2250
1740X1100X2560
1740X1180X2560
Pisua
Kg
2960
3800
4300
